K - 130 FACADE
Product description：

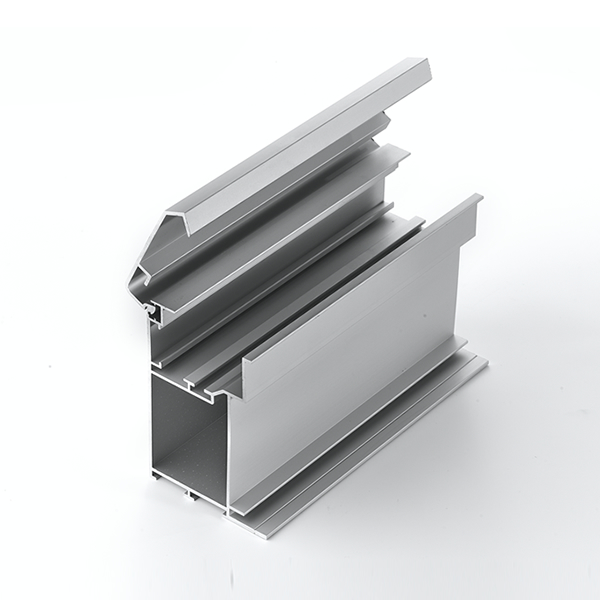

130mm Front Snap aluminum profile is designed under triangle mechancs, specially for large size engineering fabric & PVC Backlit flex light box, it will keep the shape under great stress. Frameless design in the front, breaks

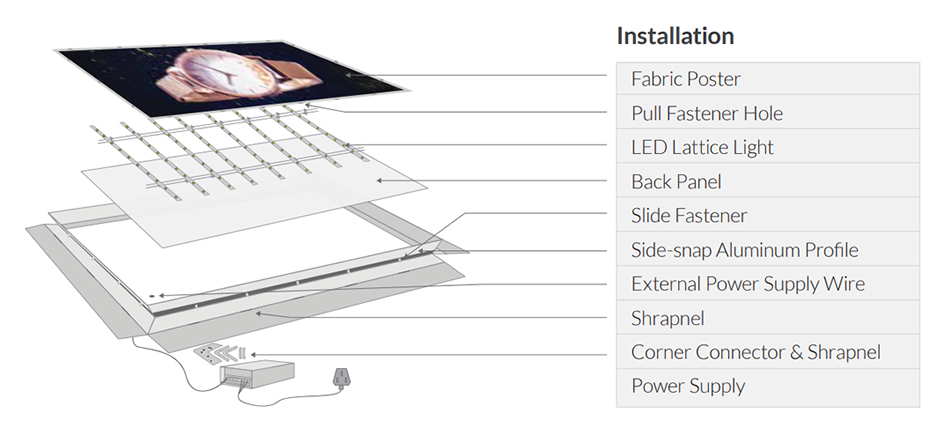

through advertising vision limit, 100% perfect poster and maximize advertising display. It is very easy to change poster and perfect appearance in the form of hiding the accessories, such as shrapnel, slide fastener… inside of the aluminum profile. This aluminum profiles are widely used for airports, high-speed rail, shopping malls and other large size indoor/outdoor advertising.
APPLICATION
- Standard : Indoor & Outdoor usage
- Signage : Frame system, POP display, Light Boxe
- Display : Retail Fixtures, Kiosk Systems, Trade Shows, Customs Interiors
Backlit
-
Single Side
-
Free Standing
-
Wall Structure
-
Crowd Control
PRINT MEDIA
- PVC Flex & Fabric

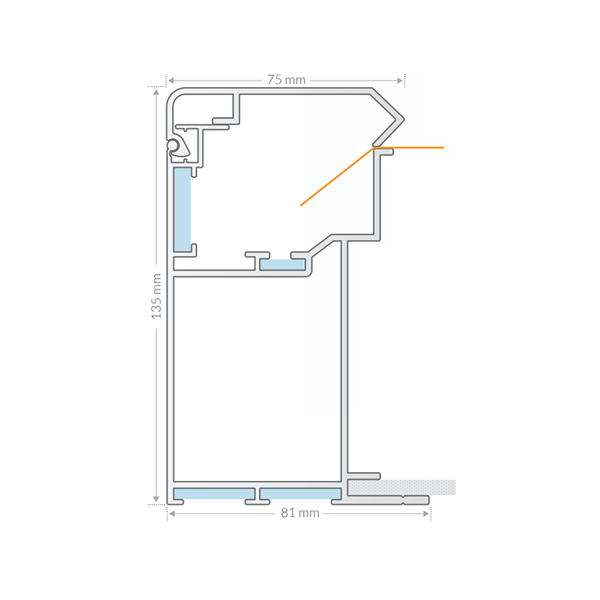

SPECIFICATION
| Specification | BASE | COVER |
|---|---|---|
| Aluminium Alloy-6063-T6 | ||
| Depth | 117 mm | 75 mm |
| Frame Face / Thickness | 2 mm | 2 mm |
| Kg. / Mtr. | 2.40 | 0.710 |
| Side Options | Single Side | |
| Length | 4.0 mtrs / 5.0 mtrs | |
| Surface | Silver Satin Anodised Other Surafce on Demand | |
| Lighting | Back – lit | |
- Extrusion Frame
- Fabric Graphic
-
Back Panel

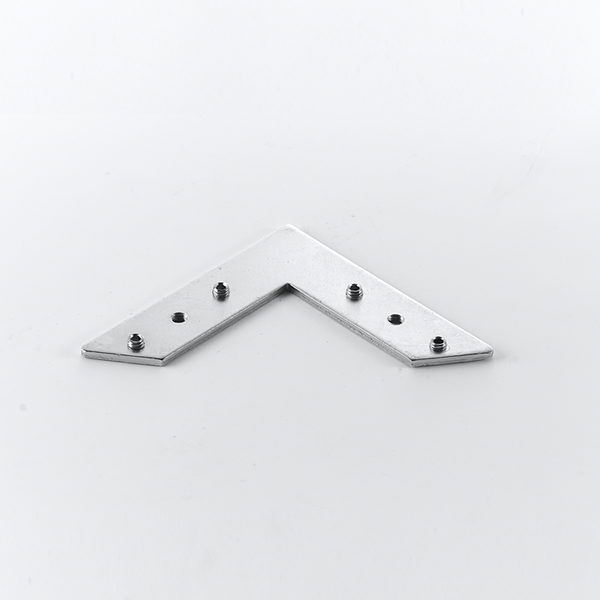

- Accessories
